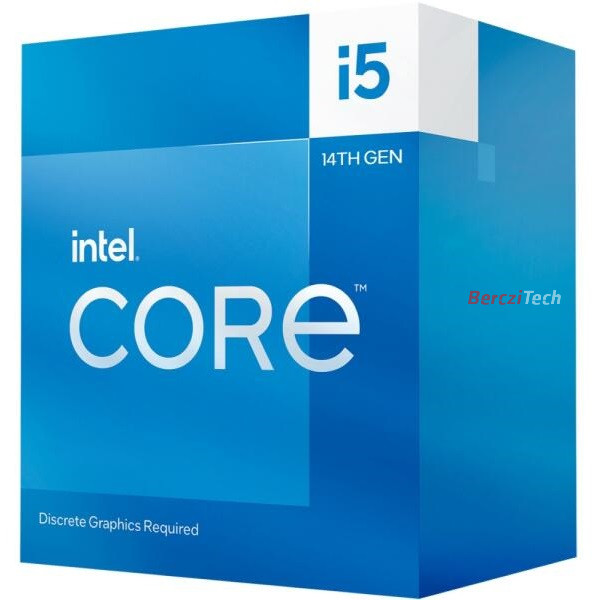

INTEL CPU S1700 Core i5-14500 2.6GHz 24MB Cache BOX

Name: INTEL CPU S1700 Core i5-14500 2.6GHz 24MB Cache BOX
Brand: INTEL
SKU: 353360
Price: 118247 HUF
Availability: InStock

Bővebben

Raktáron : 3 db

118 247 Ft

Részletek

Essentials

Product CollectionIntel® Core™ i5 Processors (14th gen)
Code NameProducts formerly RAPTOR LAKE
Vertical SegmentDesktop
Processor Numberi5-14600K
LithographyIntel 7
Use ConditionsPC/Client/Tablet, Workstation
Recommended Customer Price$319.00-$329.00

CPU Specifications

Total Cores14
# of Performance-cores6
# of Efficient-cores8
Total Threads20
Max Turbo Frequency5.3 GHz
Performance-core Max Turbo Frequency5.3 GHz
Efficient-core Max Turbo Frequency4 GHz
Performance-core Base Frequency3.5 GHz
Efficient-core Base Frequency2.6 GHz
Cache24 MB Intel® Smart Cache
Total L2 Cache20 MB
Processor Base Power125 W
Maximum Turbo Power181 W

Supplemental Information

Marketing StatusLaunched
Launch DateQ4'23
Embedded Options AvailableNo

Memory Specifications

Max Memory Size (dependent on memory type)192 GB
Memory TypesUp to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels2
Max Memory Bandwidth89.6 GB/s
ECC Memory Supported ^‡Yes

GPU Specifications

Processor Graphics ^‡Intel® UHD Graphics 770
Graphics Base Frequency300 MHz
Graphics Max Dynamic Frequency1.55 GHz
Graphics OutputeDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units32
Max Resolution (HDMI)^‡4096 x 2160 @ 60Hz
Max Resolution (DP)‡7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡5120 x 3200 @ 120Hz
DirectX* Support12
OpenGL* Support4.5
OpenCL* Support3.0
Multi-Format Codec Engines2
Intel® Quick Sync VideoYes
Intel® Clear Video HD TechnologyYes
# of Displays Supported ^‡4
Device ID0xA780

Expansion Options

Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision5.0 and 4.0
PCI Express Configurations ^‡Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes20

Package Specifications

Sockets SupportedFCLGA1700
Max CPU Configuration1
Thermal Solution SpecificationPCG 2020A
T_JUNCTION100°C
Package Size45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator3.0
Intel® Thread DirectorYes
Intel® Deep Learning Boost (Intel® DL Boost) on CPUYes
Intel® Speed Shift TechnologyYes
Intel® Turbo Boost Technology ^‡2.0
Intel® Hyper-Threading Technology ^‡Yes
Intel® 64 ^‡Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle StatesYes
Enhanced Intel SpeedStep® TechnologyYes
Thermal Monitoring TechnologiesYes
Intel® Volume Management Device (VMD)Yes

Security & Reliability

Intel® Standard Manageability (ISM) ^‡Yes
Intel® Control-Flow Enforcement TechnologyYes
Intel® AES New InstructionsYes
Secure KeyYes
Intel® OS GuardYes
Execute Disable Bit ^‡Yes
Intel® Boot GuardYes
Mode-based Execute Control (MBEC)Yes
Intel® Virtualization Technology (VT-x) ^‡Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ^‡Yes
Intel® VT-x with Extended Page Tables (EPT) ^‡Yes

Adatok

Gyártó

INTEL

Gyártói cikkszám

BX8071514500

Garancia

36 hónap

EAN

5032037279178

EAN

5032037279178

kivitel

Dobozos

Gyártó

INTEL

Foglalat típusa

S1700

Szorzó

Valós frekvencia

2600

Magszám

L3 Cache

24576

Cikkszám

353360

Tömeg

460 g/db
