| Part No |
90NX0801-M01NH0 |
| Sales Model Name |
B1503CVA-S71541 |
| EAN Code |
4711387881866 |
| UPC Code |
197105881860 |
| WEEE |
1.268 |
| BASE UNIT |
VSNX0801-BUB121 |
| Operating System |
Non-preinstalled OS |
| Office |
|
| LCD cover-material |
Plastic |
| LCD cover-color |
Gentle Grey |
| Top case-material |
Plastic |
| Top case-color |
Gentle Grey |
| Bottom case-material |
Plastic |
| Bottom case-color |
Gentle Grey |
| Military grade |
US MIL-STD 810H military-grade standard |
| Panel Size |
15.6-inch |
| Backlit |
LED Backlit |
| Brightness |
300nits |
| Resolution |
FHD (1920 x 1080) 16:9 |
| Glare |
Anti-glare display |
| Color gamut |
NTSC: 45% |
| View angle(H/V) |
170/170 |
| Response time(Typ/Max) (ms) |
20/25 |
| Refresh rate |
60Hz |
| Contrast (Typ) |
800:1 |
| Touch Panel |
Non-touch screen |
| Screen-to-body ratio |
87 % |
| IPS-level |
Wide view |
| Processor |
Intel® Core™ i5-1335U Processor 1.3GHz (12M Cache, up to 4.6GHz, 10 cores) |
| Neural processor |
|
| Chipset |
N/A |
| Discrete/Share |
Share |
| Integrated GPU |
Intel® UHD Graphics |
| VRAM |
N/A |
| How to upgrade memory |
Upgradable
Need to remove bottom/top case |
| Expansion Slot(includes used) |
2x DDR5 SO-DIMM slots
1x M.2 2230 PCIe 4.0x4
1x M.2 2280 PCIe 4.0x4 |
| DIMM Memory |
16GB DDR5 SO-DIMM |
| Total System Memory |
DDR5 16GB |
| Storage |
512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
SSD Housing for storage expansion |
| Front-facing camera |
720p HD camera
With privacy shutter |
| Wireless |
Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card |
| NumberPad |
N/A |
| FingerPrint |
FingerPrint |

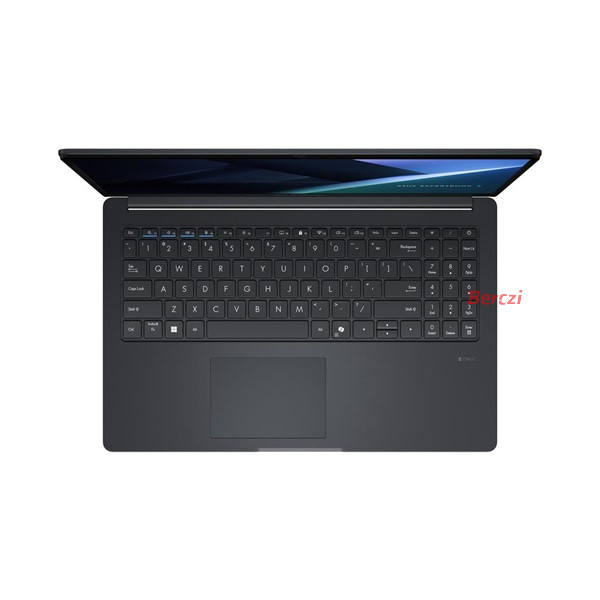

| Keyboard type |
Backlit Chiclet Keyboard with Num-key |

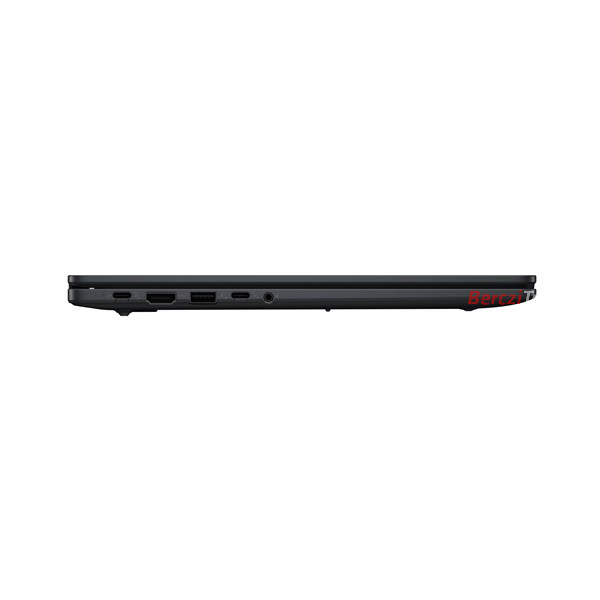

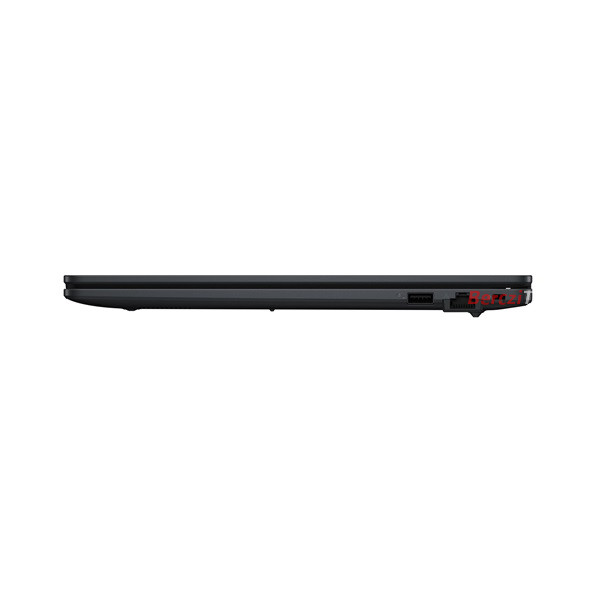

| I/O ports |
2x USB 3.2 Gen 1 Type-A
2x USB 3.2 Gen 2 Type-C support display / power delivery
1x HDMI 1.4, up to 3840x2160p/30Hz
1x 3.5mm Combo Audio Jack
1x RJ45 Gigabit Ethernet |
| Audio |
Audio by Dirac
Built-in speaker
Built-in array microphone |
| Battery |
50WHrs, 3S1P, 3-cell Li-ion |
| AC Adapter |
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal |
| Dimension (WxHxD) |
35.95 x 23.22 x 1.99 ~ 1.99 cm (14.15" x 9.14" x 0.78" ~ 0.78") |
| Weight (with Battery) |
1.65 kg (3.64 lbs) |
| Weight (w/o Battery) |
1.46 kg (3.22 lbs) |
| Security |
Fingerprint sensor intergrated with Touchpad
Kensington Nano Security Slot™(6x 2.5mm)
BIOS Booting User Password Protection
BIOS Integrity Measurement Support
BIOS Protection Support
BIOS Self Recovery
BIOS setup user password
CSME BIOS Redundancy Assistance
Enhanced Password Strength
HDD User Password Protection and Security
Intel CSME Firmware Resilience
Intel® BIOS Guard
Intel® Boot Guard
Microsoft Secured-core PC
Microsoft Security Level 2
Support Absolute Persistence 2.0 (Computrace)
Trusted Platform Module (TPM) 2.0
N/A |
| Antivirus |
|
| MyASUS feature |
System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
AppDeals
Link to MyASUS |
| Built-in Apps |
MyASUS
AI ExpertMeet (AI features need devices with 12GB RAM or more) |
| Disclaimer for Built-in Apps |
Built-in Apps vary from OS SKU.
*MyASUS/McAfee don't support in Pure OS/without OS/G sku/Win SE/Windows on ARM/Linux OS (ex. Endless, Kylin, Ubuntu) |
| Reparability Index (for France) |
9.5 |
| Ecolabels & Compliances |
EPEAT Gold with Climate+
Energy star 8.0
FSC Recycled
REACH
RoHS |
| Base Warranty |
3Y Pick up/ return |
| Recommended Warranty Package Part number//Extension and/or upgrade service from base warranty |
ACX13-007003NX//3Y OnSite Service(Next Business Day)*upgrade
ACX13-007023NX//2Y Extension
5Y OnSite Service(Next Business Day)*upgrade
ACX14-017300NX//3Y HDD Retention*upgrade
*If you would like to know the details, please contact your sales teams. |
| Battery warranty |
Commercial NB B series Battery warranty follow system warranty, 4Y-5Y by WEP option. |
| Sustainable Material_Top cover(A part) |
30% PCR recycled plastic(cover or inner frame) |
| Sustainable Material_Keyboard frame (C part) |
30% PCR recycled plastic(cover or inner frame) |
| Sustainable Material_Bottom cover (D part) |
30% PCR recycled plastic(cover or inner frame) |
| Sustainable Material_Battery |
30% PCR recycled plastic |
| Sustainable Material_Keyboard |
|
| Sustainable Material_Speaker |
|
| Sustainable Material_Total PCR recycled plastic |
29% |
